Title 33: Navigation and Navigable Waters


PART 105—MARITIME SECURITY: FACILITIES


Contents

Subpart A—General

§105.100   Definitions.

Except as specifically stated in this subpart, the definitions in part 101 of this subchapter apply to this part.

return arrow Back to Top

§105.105   Applicability.

(a) The requirements in this part apply to the owner or operator of any U.S.:

(1) Facility subject to 33 CFR parts 126, 127, or 154;

(2) Facility that receives vessels certificated to carry more than 150 passengers, except those vessels not carrying and not embarking or disembarking passengers at the facility;

(3) Facility that receives vessels subject to the International Convention for Safety of Life at Sea, 1974, chapter XI;

(4) Facility that receives foreign cargo vessels greater than 100 gross register tons;

(5) Facility that receives U.S. cargo vessels, greater than 100 gross register tons, subject to 46 CFR chapter I, subchapter I, except for those facilities that receive only commercial fishing vessels inspected under 46 CFR part 105; or

(6) Barge fleeting facility that receives barges carrying, in bulk, cargoes regulated by 46 CFR chapter I, subchapters D or O, or Certain Dangerous Cargoes.

(b) An owner or operator of any facility not covered in paragraph (a) of this section is subject to parts 101 through 103 of this subchapter.

(c) This part does not apply to the owner or operator of the following U.S. facilities:

(1) A facility owned or operated by the U.S. that is used primarily for military purposes.

(2) An oil and natural gas production, exploration, or development facility regulated by 33 CFR parts 126 or 154 if:

(i) The facility is engaged solely in the exploration, development, or production of oil and natural gas; and

(ii) The facility does not meet or exceed the operating conditions in §106.105 of this subchapter;

(3) A facility that supports the production, exploration, or development of oil and natural gas regulated by 33 CFR parts 126 or 154 if:

(i) The facility is engaged solely in the support of exploration, development, or production of oil and natural gas and transports or stores quantities of hazardous materials that do not meet or exceed those specified in 49 CFR 172.800(b)(1) through (b)(6); or

(ii) The facility stores less than 42,000 gallons of cargo regulated by 33 CFR part 154;

(4) A mobile facility regulated by 33 CFR part 154; or

(5) An isolated facility that receives materials regulated by 33 CFR parts 126 or 154 by vessel due to the lack of road access to the facility and does not distribute the material through secondary marine transfers.

(d) The TWIC requirements found in this part do not apply to mariners employed aboard vessels moored at U.S. facilities only when they are working immediately adjacent to their vessels in the conduct of vessel activities.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60541, Oct. 22, 2003; USCG-2006-24196, 72 FR 55048, Sept. 28, 2007]

return arrow Back to Top

§105.106   Public access areas.

(a) A facility serving ferries or passenger vessels certificated to carry more than 150 passengers, other than cruise ships, may designate an area within the facility as a public access area.

(b) A public access area is a defined space within a facility that is open to all persons and provides pedestrian access through the facility from public thoroughfares to the vessel.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60540, Oct. 22, 2003]

return arrow Back to Top

§105.110   Exemptions.

(a) A public access area designated under §105.106 is exempt from the requirements for screening of persons, baggage, and personal effects and identification of persons in subpart E of part 101 of this subchapter, as applicable, in §§105.255 and 105.285(a)(1).

(b) An owner or operator of any general shipyard facility as defined in §101.105 of this subchapter is exempt from the requirements of this part unless the facility—

(1) Is subject to parts 126, 127, or 154 of this chapter; or

(2) Provides any other service to vessels subject to part 104 of this subchapter not related to construction, repair, rehabilitation, refurbishment, or rebuilding.

(c) Public access facility. (1) The COTP may exempt a public access facility from the requirements of this part, including establishing conditions for which such an exemption is granted, to ensure that adequate security is maintained.

(2) The owner or operator of any public access facility exempted under this section must—

(i) Comply with any COTP conditions for the exemption; and

(ii) Ensure that the cognizant COTP has the appropriate information for contacting the individual with security responsibilities for the public access facility at all times.

(3) The cognizant COTP may withdraw the exemption for a public access facility at any time the owner or operator fails to comply with any requirement of the COTP as a condition of the exemption or any measure ordered by the COTP pursuant to existing COTP authority.

(d) An owner or operator of a facility is not subject to this part if the facility receives only vessels to be laid-up, dismantled, or otherwise placed out of commission provided that the vessels are not carrying and do not receive cargo or passengers at that facility.

(e) Barge fleeting facilities without shore side access are exempt from the requirements in 33 CFR 101.535(b)(1).

[USCG-2007-28915, 81 FR 57711, Aug. 23, 2016]

return arrow Back to Top

§105.115   Compliance dates.

(a) Facility owners or operators must submit to the cognizant Captain of the Port (COTP) for each facility—

(1) The Facility Security Plan (FSP) described in subpart D of this part for review and approval; or

(2) If intending to operate under an approved Alternative Security Program, a letter signed by the facility owner or operator stating which approved Alternative Security Program the owner or operator intends to use.

(b) Facility owners or operators wishing to designate only those portions of their facility that are directly connected to maritime transportation or are at risk of being involved in a transportation security incident as their secure area(s) must do so by submitting an amendment to their FSP to their cognizant COTP, in accordance with §105.415.

(c) By August 23, 2018, owners and operators of facilities subject to this part must amend their FSPs to indicate how they will implement the TWIC requirements in this subchapter. By August 23, 2018, owners and operators of facilities subject to this part must be operating in accordance with the TWIC provisions found within this subchapter.

[USCG-2007-28915, 81 FR 57712, Aug. 23, 2016]

return arrow Back to Top

§105.120   Compliance documentation.

Each facility owner or operator subject to this part must ensure that copies of the following documentation are available at the facility and are made available to the Coast Guard upon request:

(a) The approved Facility Security Plan (FSP), as well as any approved revisions or amendments thereto, and a letter of approval from the COTP dated within the last 5 years;

(b) The FSP submitted for approval and an acknowledgement letter from the COTP stating that the Coast Guard is currently reviewing the FSP submitted for approval, and that the facility may continue to operate so long as the facility remains in compliance with the submitted FSP; or

(c) For facilities operating under a Coast Guard-approved Alternative Security Program as provided in §105.140, a copy of the Alternative Security Program the facility is using, including a facility specific security assessment report generated under the Alternative Security Program, as specified in §101.120(b)(3) of this subchapter, and a letter signed by the facility owner or operator, stating which Alternative Security Program the facility is using and certifying that the facility is in full compliance with that program.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60541, Oct. 22, 2003; USCG-2007-28915, 81 FR 57712, Aug. 23, 2016]

return arrow Back to Top

§105.125   Noncompliance.

When a facility must temporarily deviate from the requirements of this part, the facility owner or operator must notify the cognizant COTP, and either suspend operations or request and receive permission from the COTP to continue operating.

[USCG-2003-14732, 68 FR 60541, Oct. 22, 2003]

return arrow Back to Top

§105.130   Waivers.

Any facility owner or operator may apply for a waiver of any requirement of this part that the facility owner or operator considers unnecessary in light of the nature or operating conditions of the facility, prior to operating. A request for a waiver must be submitted in writing with justification to the Commandant (CG-5P), Attn: Assistant Commandant for Prevention Policy, U.S. Coast Guard Stop 7501, 2703 Martin Luther King Jr. Avenue SE., Washington, DC 20593-7501. The Commandant (CG-5P) may require the facility owner or operator to provide data for use in determining the validity of the requested waiver. The Commandant (CG-5P) may grant, in writing, a waiver with or without conditions only if the waiver will not reduce the overall security of the facility, its employees, visiting vessels, or ports.

[USCG-2003-14732, 68 FR 39322, July 1, 2003; 68 FR 41916, July 16, 2003; USCG-2008-0179, 73 FR 35009, June 19, 2008; USCG-2010-0351, 75 FR 36282, June 25, 2010; USCG-2013-0397, 78 FR 39173, July 1, 2013; USCG-2014-0410, 79 FR 38432, July 7, 2014]

return arrow Back to Top

§105.135   Equivalents.

For any measure required by this part, the facility owner or operator may propose an equivalent as provided in §101.130 of this subchapter.

return arrow Back to Top

§105.140   Alternative Security Program.

(a) A facility owner or operator may use an Alternative Security Program approved under §101.120 of this subchapter if:

(1) The Alternative Security Program is appropriate to that facility;

(2) The Alternative Security Program is implemented in its entirety.

(b) A facility owner or operator using an Alternative Security Program approved under §101.120 of this subchapter must complete and submit to the cognizant COTP a Facility Vulnerability and Security Measures Summary (Form CG-6025) in Appendix A to Part 105—Facility Vulnerability and Security (CG-6025).

return arrow Back to Top

§105.145   Maritime Security (MARSEC) Directive.

Each facility owner or operator subject to this part must comply with any instructions contained in a MARSEC Directive issued under §101.405 of this subchapter.

return arrow Back to Top

§105.150   Right to appeal.

Any person directly affected by a decision or action taken under this part, by or on behalf of the Coast Guard, may appeal as described in §101.420 of this subchapter.

return arrow Back to Top

Subpart B—Facility Security Requirements

§105.200   Owner or operator.

(a) Each facility owner or operator must ensure that the facility operates in compliance with the requirements of this part.

(b) For each facility, the facility owner or operator must—

(1) Define the organizational structure of the security personnel and provide each person exercising security duties and responsibilities the support needed to fulfill those obligations;

(2) Designate, in writing, by name or by title, a Facility Security Officer (FSO) and identify how the officer can be contacted at any time;

(3) Ensure that a Facility Security Assessment (FSA) is conducted;

(4) Ensure the development and submission for approval of a Facility Security Plan (FSP);

(5) Ensure that the facility operates in compliance with the approved FSP;

(6) Ensure that the Transportation Worker Identification Credential (TWIC) Program is properly implemented as set forth in this subchpter, including—

(i) Ensuring that only individuals who hold a TWIC and are authorized to be in the secure area in accordance with the FSP are permitted to serve as an escort;

(ii) Identifying what action is to be taken by an escort, or other authorized individual, in the event that individuals under escort engage in activities other than those for which escorted access was granted; and

(iii) Notifying facility employees, and passengers if applicable, of which parts of the facility are secure areas and which are public access areas, as applicable, and ensuring such areas are clearly marked.

(7) Ensure that restricted areas are controlled and TWIC provisions are coordinated, if applied to such restricted areas;

(8) Ensure that adequate coordination of security issues takes place between the facility and vessels that call on it, including the execution of a Declaration of Security (DoS) as required by this part;

(9) Ensure implementation of a system, in accordance with §105.237, coordinating shore leave for vessel personnel or crew change-out, as well as access through the facility for visitors to the vessel, as described in §105.237(b)(3), with vessel operators in advance of a vessel's arrival. In coordinating such leave, facility owners or operators may refer to treaties of friendship, commerce, and navigation between the U.S. and other nations;

(10) Ensure, within 12 hours of notification of an increase in MARSEC Level, implementation of the additional security measures required for the new MARSEC Level;

(11) Ensure security for unattended vessels moored at the facility;

(12) Ensure the report of all breaches of security and transportation security incidents to the National Response Center in accordance with part 101 of this chapter;

(13) Ensure consistency between security requirements and safety requirements;

(14) Inform facility personnel of their responsibility to apply for and maintain a TWIC, including the deadlines and methods for such applications, and of their obligation to inform Transportation Security Administration (TSA) of any event that would render them ineligible for a TWIC, or which would invalidate their existing TWIC;

(15) Ensure that protocols consistent with §101.550 of this subchapter, for dealing with individuals requiring access who report a lost, damaged, or stolen TWIC, or who have applied for and not yet received a TWIC, are in place; and

(16) If applicable, ensure that protocols consistent with §105.257, for dealing with newly hired employees who have applied for and not yet received a TWIC, are in place.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60541, Oct. 22, 2003; USCG-2006-24196, 72 FR 3582, Jan. 25, 2007; USCG-2013-0397, 78 FR 39173, July 1, 2013; USCG-2007-28915, 81 FR 57712, Aug. 23, 2016; USCG-2013-1087, 84 FR 12119, Apr. 1, 2019]

return arrow Back to Top

§105.205   Facility Security Officer (FSO).

(a) General. (1) The FSO may perform other duties within the owner's or operator's organization, provided he or she is able to perform the duties and responsibilities required of the FSO.

(2) The same person may serve as the FSO for more than one facility, provided the facilities are in the same COTP zone and are not more than 50 miles apart. If a person serves as the FSO for more than one facility, the name of each facility for which he or she is the FSO must be listed in the Facility Security Plan (FSP) of each facility for which or she is the FSO.

(3) The FSO may assign security duties to other facility personnel; however, the FSO retains the responsibility for these duties.

(4) The FSO must maintain a TWIC.

(b) Qualifications. (1) The FSO must have general knowledge, through training or equivalent job experience, in the following:

(i) Security organization of the facility;

(ii) General vessel and facility operations and conditions;

(iii) Vessel and facility security measures, including the meaning and the requirements of the different MARSEC Levels;

(iv) Emergency preparedness, response, and contingency planning;

(v) Security equipment and systems, and their operational limitations; and

(vi) Methods of conducting audits, inspections, control, and monitoring techniques.

(2) In addition to knowledge and training required in paragraph (b)(1) of this section, the FSO must have knowledge of and receive training in the following, as appropriate:

(i) Relevant international laws and codes, and recommendations;

(ii) Relevant government legislation and regulations;

(iii) Responsibilities and functions of local, State, and Federal law enforcement agencies;

(iv) Security assessment methodology;

(v) Methods of facility security surveys and inspections;

(vi) Instruction techniques for security training and education, including security measures and procedures;

(vii) Handling sensitive security information and security related communications;

(viii) Current security threats and patterns;

(ix) Recognizing and detecting dangerous substances and devices;

(x) Recognizing characteristics and behavioral patterns of persons who are likely to threaten security;

(xi) Techniques used to circumvent security measures;

(xii) Conducting physical searches and non-intrusive inspections;

(xiii) Conducting security drills and exercises, including exercises with vessels; and

(xiv) Assessing security drills and exercises.

(xv) Knowledge of TWIC requirements.

(c) Responsibilities. In addition to those responsibilities and duties specified elsewhere in this part, the FSO must, for each facility for which he or she has been designated:

(1) Ensure that the Facility Security Assessment (FSA) is conducted;

(2) Ensure the development and implementation of a FSP;

(3) Ensure that an annual audit is conducted, and if necessary that the FSA and FSP are updated;

(4) Ensure the FSP is exercised per §105.220 of this part;

(5) Ensure that regular security inspections of the facility are conducted;

(6) Ensure the security awareness and vigilance of the facility personnel;

(7) Ensure adequate training to personnel performing facility security duties;

(8) Ensure that occurrences that threaten the security of the facility are recorded and reported to the owner or operator;

(9) Ensure the maintenance of records required by this part;

(10) Ensure the preparation and the submission of any reports as required by this part;

(11) Ensure the execution of any required Declarations of Security with Masters, Vessel Security Officers or their designated representatives;

(12) Ensure the coordination of security services in accordance with the approved FSP;

(13) Ensure that security equipment is properly operated, tested, calibrated, and maintained;

(14) Ensure the recording and reporting of attainment changes in MARSEC Levels to the owner or operator and the cognizant COTP;

(15) When requested, ensure that the Vessel Security Officers receive assistance in confirming the identity of visitors and service providers seeking to board the vessel through the facility;

(16) Ensure notification, as soon as possible, to law enforcement personnel and other emergency responders to permit a timely response to any transportation security incident;

(17) Ensure that the FSP is submitted to the cognizant COTP for approval, as well as any plans to change the facility or facility infrastructure prior to amending the FSP; and

(18) Ensure that all facility personnel are briefed of changes in security conditions at the facility.

(19) Ensure the TWIC program is being properly implemented.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60541, Oct. 22, 2003; USCG-2006-24196, 72 FR 3583, Jan. 25, 2007]

return arrow Back to Top

§105.210   Facility personnel with security duties.

Facility personnel responsible for security duties must maintain a TWIC, and must have knowledge, through training or equivalent job experience, in the following, as appropriate:

(a) Knowledge of current security threats and patterns;

(b) Recognition and detection of dangerous substances and devices;

(c) Recognition of characteristics and behavioral patterns of persons who are likely to threaten security;

(d) Techniques used to circumvent security measures;

(e) Crowd management and control techniques;

(f) Security related communications;

(g) Knowledge of emergency procedures and contingency plans;

(h) Operation of security equipment and systems;

(i) Testing, calibration, and maintenance of security equipment and systems;

(j) Inspection, control, and monitoring techniques;

(k) Relevant provisions of the Facility Security Plan (FSP);

(l) Methods of physical screening of persons, personal effects, baggage, cargo, and vessel stores; and

(m) The meaning and the consequential requirements of the different MARSEC Levels.

(n) Familiar with all relevant aspects of the TWIC program and how to carry them out.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended by USCG-2006-24196, 72 FR 3583, Jan. 25, 2007]

return arrow Back to Top

§105.215   Security training for all other facility personnel.

All other facility personnel, including contractors, whether part-time, full-time, temporary, or permanent, must have knowledge of, through training or equivalent job experience, in the following, as appropriate:

(a) Relevant provisions of the Facility Security Plan (FSP);

(b) The meaning and the consequential requirements of the different MARSEC Levels as they apply to them, including emergency procedures and contingency plans;

(c) Recognition and detection of dangerous substances and devices;

(d) Recognition of characteristics and behavioral patterns of persons who are likely to threaten security; and

(e) Techniques used to circumvent security measures.

(f) Familiar with all relevant aspects of the TWIC program and how to carry them out.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60541, Oct. 22, 2003; USCG-2006-24196, 72 FR 3583, Jan. 25, 2007]

return arrow Back to Top

§105.220   Drill and exercise requirements.

(a) General. (1) Drills and exercises must test the proficiency of facility personnel in assigned security duties at all MARSEC Levels and the effective implementation of the Facility Security Plan (FSP). They must enable the Facility Security Officer (FSO) to identify any related security deficiencies that need to be addressed.

(2) A drill or exercise required by this section may be satisfied with the implementation of security measures required by the FSP as the result of an increase in the MARSEC Level, provided the facility reports attainment to the cognizant COTP.

(b) Drills. (1) The FSO must ensure that at least one security drill is conducted every 3 months. Security drills may be held in conjunction with non-security drills, where appropriate.

(2) Drills must test individual elements of the FSP, including response to security threats and incidents. Drills should take into account the types of operations of the facility, facility personnel changes, the type of vessel the facility is serving, and other relevant circumstances. Examples of drills include unauthorized entry to a restricted area, response to alarms, and notification of law enforcement authorities.

(3) If a vessel is moored at the facility on the date the facility has planned to conduct any drills, the facility cannot require the vessel or vessel personnel to be a part of or participate in the facility's scheduled drill.

(c) Exercises. (1) Exercises must be conducted at least once each calendar year, with no more than 18 months between exercises.

(2) Exercises may be:

(i) Full scale or live;

(ii) Tabletop simulation or seminar;

(iii) Combined with other appropriate exercises; or

(iv) A combination of the elements in paragraphs (c)(2)(i) through (iii) of this section.

(3) Exercises may be facility-specific or part of a cooperative exercise program with applicable facility and vessel security plans or comprehensive port exercises.

(4) Each exercise must test communication and notification procedures, and elements of coordination, resource availability, and response.

(5) Exercises are a full test of the security program and must include substantial and active participation of FSOs, and may include government authorities and vessels visiting the facility. Requests for participation of Company and Vessel Security Officers in joint exercises should consider the security and work implications for the vessel.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60541, Oct. 22, 2003]

return arrow Back to Top

§105.225   Facility recordkeeping requirements.

(a) Unless otherwise specified in this section, the Facility Security Officer (FSO) must keep records of the activities as set out in paragraph (b) of this section for at least 2 years and make them available to the Coast Guard upon request.

(b) Records required by this section may be kept in electronic format. If kept in an electronic format, they must be protected against unauthorized deletion, destruction, or amendment. The following records must be kept:

(1) Training. For training under §§105.210 and 105.535, the date of each session, duration of session, a description of the training, and a list of attendees;

(2) Drills and exercises. For each drill or exercise, the date held, description of drill or exercise, list of participants, and any best practices or lessons learned which may improve the Facility Security Plan (FSP);

(3) Incidents and breaches of security. For each incident or breach of security, the date and time of occurrence, location within the facility, description of incident or breaches, to whom it was reported, and description of the response;

(4) Changes in MARSEC Levels. For each change in MARSEC Level, the date and time of notification received, and time of compliance with additional requirements;

(5) Maintenance, calibration, and testing of security equipment. For each occurrence of maintenance, calibration, and testing, record the date and time, and the specific security equipment involved;

(6) Security threats. For each security threat, the date and time of occurrence, how the threat was communicated, who received or identified the threat, description of threat, to whom it was reported, and description of the response;

(7) Declaration of Security (DoS) A copy of each single-visit DoS and a copy of each continuing DoS for at least 90 days after the end of its effective period;

(8) Annual audit of the FSP. For each annual audit, a letter certified by the FSO stating the date the audit was completed; and

(9) TWIC Reader/Physical Access Control System (PACS). For each individual granted unescorted access to a secure area, the: FASC-N; date and time that unescorted access was granted; and, if captured, the individual's name. Additionally, documentation to demonstrate that the owner or operator has updated the Canceled Card List with the frequency required in §101.525 of this subchapter.

(c) Any record required by this part must be protected from unauthorized access or disclosure. Electronic reader records and similar records in a PACS are sensitive security information and must be protected in accordance with 49 CFR part 1520.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60541, Oct. 22, 2003; USCG-2006-23846, 83 FR 12102, Mar. 19, 2018; USCG-2007-28915, 81 FR 57712, Aug. 23, 2016]

return arrow Back to Top

§105.230   Maritime Security (MARSEC) Level coordination and implementation.

(a) The facility owner or operator must ensure the facility operates in compliance with the security requirements in this part for the MARSEC Level in effect for the port.

(b) When notified of an increase in the MARSEC Level, the facility owner and operator must ensure:

(1) Vessels moored to the facility and vessels scheduled to arrive at the facility within 96 hours of the MARSEC Level change are notified of the new MARSEC Level and the Declaration of Security is revised as necessary;

(2) The facility complies with the required additional security measures within 12 hours; and

(3) The facility reports compliance or noncompliance to the COTP.

(c) For MARSEC Levels 2 and 3, the Facility Security Officer must inform all facility personnel about identified threats, and emphasize reporting procedures and stress the need for increased vigilance.

(d) An owner or operator whose facility is not in compliance with the requirements of this section, must inform the COTP and obtain approval prior to interfacing with a vessel or continuing operations.

(e) At MARSEC Level 3, in addition to the requirements in this part, a facility owner or operator may be required to implement additional measures, pursuant to 33 CFR part 6, 160, or 165, as appropriate, which may include but are not limited to:

(1) Use of waterborne security patrol;

(2) Use of armed security personnel to control access to the facility and to deter, to the maximum extent practical, a transportation security incident; and

(3) Examination of piers, wharves, and similar structures at the facility for the presence of dangerous substances or devices underwater or other threats.

return arrow Back to Top

§105.235   Communications.

(a) The Facility Security Officer must have a means to effectively notify facility personnel of changes in security conditions at the facility.

(b) Communication systems and procedures must allow effective and continuous communications between the facility security personnel, vessels interfacing with the facility, the cognizant COTP, and national and local authorities with security responsibilities.

(c) At each active facility access point, provide a means of contacting police, security control, or an emergency operations center, by telephones, cellular phones, and/or portable radios, or other equivalent means.

(d) Facility communications systems must have a backup means for both internal and external communications.

return arrow Back to Top

§105.237   System for seafarers' access.

(a) Access required. Each facility owner or operator must implement a system by June 1, 2020 for providing access through the facility that enables individuals to transit to and from a vessel moored at the facility and the facility gate in accordance with the requirements in this section. The system must provide timely access as described in paragraph (c) of this section and incorporate the access methods described in paragraph (d) of this section at no cost to the individuals covered. The system must comply with the Transportation Worker Identification Credential (TWIC) provisions in this part.

(b) Individuals covered. The individuals to whom the facility owner or operator must provide the access described in this section include—

(1) Seafarers assigned to a vessel at that facility;

(2) Pilots; and

(3) Representatives of seafarers' welfare and labor organizations.

(c) Timely access. The facility owner or operator must provide the access described in this section without unreasonable delay, subject to review by the Captain of the Port (COTP). The facility owner or operator must consider the following when establishing timely access without unreasonable delay:

(1) Length of time the vessel is in port.

(2) Distance of egress/ingress between the vessel and facility gate.

(3) The vessel watch schedules.

(4) The facility's safety and security procedures as required by law.

(5) Any other factors specific to the vessel or facility that could affect access to and from the vessel.

(d) Access methods. The facility owner or operator must ensure that the access described in this section is provided through one or more of the following methods:

(1) Regularly scheduled escort between the vessel and the facility gate that conforms to the vessel's watch schedule as agreed upon between the vessel and facility.

(2) An on-call escort between the vessel and the facility gate.

(3) Arrangements with taxi services or other transportation services, ensuring that any costs for providing the access described in this section, above the service's standard fees charged to any customer, are not charged to the individual to whom such access is provided. If a facility provides arrangements with taxi services or other transportation services as the only method for providing the access described in this section, the facility is responsible to pay any fees for transit within the facility.

(4) Arrangements with seafarers' welfare organizations to facilitate the access described in this section.

(5) Monitored pedestrian access routes between the vessel and facility gate.

(6) A method, other than those in paragraphs (d)(1) through (5) of this section, approved by the COTP.

(7) If an access method relies on a third party, a back-up access method that will be used if the third party is unable to or does not provide the required access in any instance. An owner or operator must ensure that the access required in paragraph (a) of this section is actually provided in all instances.

(e) No cost to individuals. The facility owner or operator must provide the access described in this section at no cost to the individual to whom such access is provided.

(f) Described in the Facility Security Plan (FSP). On or before February 3, 2020, the facility owner or operator must document the facility's system for providing the access described in this section in the approved FSP in accordance with §105.410 or §105.415. The description of the facility's system must include—

(1) Location of transit area(s) used for providing the access described in this section;

(2) Duties and number of facility personnel assigned to each duty associated with providing the access described in this section;

(3) Methods of escorting and/or monitoring individuals transiting through the facility;

(4) Agreements or arrangements between the facility and private parties, nonprofit organizations, or other parties, to facilitate the access described in this section; and

(5) Maximum length of time an individual would wait for the access described in this section, based on the provided access method(s).

[USCG-2013-1087, 84 FR 12119, Apr. 1, 2019]

return arrow Back to Top

§105.240   Procedures for interfacing with vessels.

The facility owner or operator must ensure that there are measures for interfacing with vessels at all MARSEC Levels.

return arrow Back to Top

§105.245   Declaration of Security (DoS).

(a) Each facility owner or operator must ensure procedures are established for requesting a DoS and for handling DoS requests from a vessel.

(b) At MARSEC Level 1, a facility receiving a cruise ship or a manned vessel carrying Certain Dangerous Cargo, in bulk, must comply with the following:

(1) Prior to the arrival of a vessel to the facility, the Facility Security Officer (FSO) and Master, Vessel Security Officer (VSO), or their designated representatives must coordinate security needs and procedures, and agree upon the contents of the DoS for the period of time the vessel is at the facility; and

(2) Upon the arrival of the vessel at the facility, the FSO and Master, VSO, or their designated representative, must sign the written DoS.

(c) Neither the facility nor the vessel may embark or disembark passengers, nor transfer cargo or vessel stores until the DoS has been signed and implemented.

(d) At MARSEC Levels 2 and 3, the FSOs, or their designated representatives, of facilities interfacing with manned vessels subject to part 104, of this subchapter must sign and implement DoSs as required in (b)(1) and (2) of this section.

(e) At MARSEC Levels 1 and 2, FSOs of facilities that frequently interface with the same vessel may implement a continuing DoS for multiple visits, provided that:

(1) The DoS is valid for a specific MARSEC Level;

(2) The effective period at MARSEC Level 1 does not exceed 90 days; and

(3) The effective period at MARSEC Level 2 does not exceed 30 days.

(f) When the MARSEC Level increases beyond that contained in the DoS, the continuing DoS is void and a new DoS must be executed in accordance with this section.

(g) A copy of all currently valid continuing DoSs must be kept with the Facility Security Plan.

(h) The COTP may require, at any time, at any MARSEC Level, any facility subject to this part to implement a DoS with the VSO prior to any vessel-to-facility interface when he or she deems it necessary.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60541, Oct. 22, 2003]

return arrow Back to Top

§105.250   Security systems and equipment maintenance.

(a) Security systems and equipment must be in good working order and inspected, tested, calibrated, and maintained according to manufacturers' recommendations.

(b) Security systems must be regularly tested in accordance with the manufacturers' recommendations; noted deficiencies corrected promptly; and the results recorded as required in §105.225 of this subpart.

(c) The FSP must include procedures for identifying and responding to security system and equipment failures or malfunctions.

return arrow Back to Top

§105.253   Risk Group classifications for facilities.

(a) For purposes of the Transportation Worker Identification Credential (TWIC) requirements of this subchapter, the following facilities subject to this part are in Risk Group A:

(1) Facilities that handle Certain Dangerous Cargoes (CDC) in bulk or receive vessels carrying CDC in bulk.

(2) Facilities that receive vessels certificated to carry more than 1,000 passengers.

(b) Facilities may move from one Risk Group classification to another, based on the material they handle or the types of vessels they receive at any given time. An owner or operator of a facility expected to move between Risk Groups must explain, in the Facility Security Plan, the timing of such movements, as well as how the facility will move between the requirements of the higher and lower Risk Groups, with particular attention to the security measures to be taken when moving from a lower Risk Group to a higher Risk Group.

[USCG-2007-28915, 81 FR 57712, Aug. 23, 2016]

return arrow Back to Top

§105.255   Security measures for access control.

(a) General. The facility owner or operator must ensure the implementation of security measures to:

(1) Deter the unauthorized introduction of dangerous substances and devices, including any device intended to damage or destroy persons, vessels, facilities, or ports;

(2) Secure dangerous substances and devices that are authorized by the owner or operator to be on the facility;

(3) Control access to the facility; and

(4) Prevent an unescorted individual from entering an area of the facility that is designated as a secure area unless the individual holds a duly issued TWIC and is authorized to be in the area. Individuals seeking unescorted access to a secure area in a facility in Risk Group A must pass electronic TWIC inspection and those seeking unescorted access to a secure area in a facility not in Risk Group A must pass either electronic TWIC inspection or visual TWIC inspection.

(b) The facility owner or operator must ensure that the following are specified:

(1) The locations where restrictions or prohibitions that prevent unauthorized access are applied for each MARSEC Level, including those points where TWIC access control provisions will be applied. Each location allowing means of access to the facility must be addressed;

(2) The types of restrictions or prohibitions to be applied and the means of enforcing them;

(3) The means used to establish the identity of individuals not in possession of a TWIC, in accordance with §101.515 of this subchapter, and procedures for escorting them;

(4) Procedures for identifying authorized and unauthorized persons at any MARSEC level; and

(5) The locations where persons, personal effects and vehicle screenings are to be conducted. The designated screening areas should be covered to provide for continuous operations regardless of the weather conditions.

(c) The facility owner or operator must establish in the approved Facility Security Plan (FSP) the frequency of application of any access controls, particularly if they are to be applied on a random or occasional basis.

(d) MARSEC Level 1. The facility owner or operator must ensure the following security measures are implemented at the facility:

(1) Implement a TWIC Program as set out in subpart E of part 101 of this subchapter, as applicable, and in accordance with the facility's assigned Risk Group, as set out in §105.253.

(2) Screen persons, baggage (including carry-on items), personal effects, and vehicles, for dangerous substances and devices at the rate specified in the approved FSP, excluding government-owned vehicles on official business when government personnel present identification credentials for entry;

(3) Conspicuously post signs that describe security measures currently in effect and clearly state that:

(i) Entering the facility is deemed valid consent to screening or inspection; and

(ii) Failure to consent or submit to screening or inspection will result in denial or revocation of authorization to enter.

(4) Check the identification of any person not holding a TWIC and seeking entry to the facility, including vessel passengers, vendors, personnel duly authorized by the cognizant government authorities, and visitors. This check must include confirming the reason for boarding by examining at least one of the following:

(i) Joining instructions;

(ii) Passenger tickets;

(iii) Boarding passes;

(iv) Work orders, pilot orders, or surveyor orders;

(v) Government identification; or

(vi) Visitor badges issued in accordance with an identification system implemented under subpart E of part 101 of this subchapter.

(5) Deny or revoke a person's authorization to be on the facility if the person is unable or unwilling, upon the request of facility personnel or a law enforcement officer, to establish his or her identity in accordance with this part or to account for his or her presence. Any such incident must be reported in compliance with this part;

(6) Designate restricted areas and provide appropriate access controls for these areas;

(7) Identify access points that must be secured or attended to deter unauthorized access;

(8) Deter unauthorized access to the facility and to designated restricted areas within the facility;

(9) Screen by hand or device, such as x-ray, all unaccompanied baggage prior to loading onto a vessel; and

(10) Secure unaccompanied baggage after screening in a designated restricted area and maintain security control during transfers between the facility and a vessel.

(e) MARSEC Level 2. In addition to the security measures required for MARSEC Level 1 in this section, at MARSEC Level 2, the facility owner or operator must ensure the implementation of additional security measures, as specified for MARSEC Level 2 in their approved FSP. These additional security measures may include:

(1) Increasing the frequency and detail of the screening of persons, baggage, and personal effects for dangerous substances and devices entering the facility;

(2) X-ray screening of all unaccompanied baggage;

(3) Assigning additional personnel to guard access points and patrol the perimeter of the facility to deter unauthorized access;

(4) Limiting the number of access points to the facility by closing and securing some access points and providing physical barriers to impede movement through the remaining access points;

(5) Denying access to visitors who do not have a verified destination;

(6) Deterring waterside access to the facility, which may include, using waterborne patrols to enhance security around the facility;

(7) Except for government-owned vehicles on official business when government personnel present identification credentials for entry, screening vehicles and their contents for dangerous substances and devices at the rate specified for MARSEC Level 2 in the approved FSP; or

(8) Implementing additional electronic TWIC inspection requirements, as required by §105.253, and by subpart E of part 101 of this subchapter, if relevant.

(f) MARSEC Level 3. In addition to the security measures required for MARSEC Level 1 and MARSEC Level 2, at MARSEC level 3, the facility owner or operator must ensure the implementation of additional security measures, as specified for MARSEC Level 3 in their approved FSP. These additional security measures may include:

(1) Screening all persons, baggage, and personal effects for dangerous substances and devices;

(2) Performing one or more of the following on unaccompanied baggage:

(i) Screen unaccompanied baggage more extensively; for example, x-raying from two or more angles;

(ii) Prepare to restrict or suspend handling of unaccompanied baggage; or

(iii) Refuse to accept unaccompanied baggage.

(3) Being prepared to cooperate with responders and facilities;

(4) Granting access to only those responding to the security incident or threat thereof;

(5) Suspending access to the facility;

(6) Suspending cargo operations;

(7) Evacuating the facility;

(8) Restricting pedestrian or vehicular movement on the grounds of the facility;

(9) Increasing security patrols within the facility; or

(10) Implementing additional electronic TWIC inspection requirements, as required by §105.253, and by subchapter E of part 101 of this subchapter, if relevant.

[USCG-2006-24196, 72 FR 3583, Jan. 25, 2007, as amended by USCG-2007-28915, 81 FR 57712, Aug. 23, 2016]

return arrow Back to Top

§105.257   Security measures for newly-hired employees.

(a) Newly-hired facility employees may be granted entry to secure areas of the facility for up to 30 consecutive calendar days prior to receiving their TWIC provided all of the requirements in paragraph (b) of this section are met, and provided that the new hire is accompanied by an individual with a TWIC while within the secure areas of the facility. If TSA does not act upon a TWIC application within 30 days, the cognizant Coast Guard COTP may further extend access to secure areas for another 30 days. The Coast Guard will determine whether, in particular circumstances, certain practices meet the condition of a new hire being accompanied by another individual with a TWIC.

(b) Newly-hired facility employees may be granted the access provided for in paragraph (a) of this section if:

(1) The new hire has applied for a TWIC in accordance with 49 CFR part 1572 by completing the full enrollment process, paying the user fee, and is not currently engaged in a waiver or appeal process. The facility owner or operator or the Facility Security Officer (FSO) must have the new hire sign a statement affirming this, and must retain the signed statement until the new hire receives a TWIC;

(2) The facility owner or operator or the FSO enters the following information on the new hire into the Coast Guard's Homeport website (http://homeport.uscg.mil):

(i) Full legal name, including middle name if one exists;

(ii) Date of birth;

(iii) Social security number (optional);

(iv) Employer name and 24 hour contact information; and

(v) Date of TWIC enrollment.

(3) The new hire presents an identification credential that meets the requirements of §101.515 of this subchapter;

(4) There are no other circumstances that would cause reasonable suspicion regarding the new hire's ability to obtain a TWIC, and the facility owner or operator or FSO have not been informed by the cognizant COTP that the new hire poses a security threat; and

(5) There would be an adverse impact to facility operations if the new hire is not allowed access.

(c) This section does not apply to any individual being hired as a FSO, or any individual being hired to perform facility security duties.

(d) The new hire may not begin working at the facility under the provisions of this section until the owner, operator, or FSO receives notification, via Homeport or some other means, the new hire has passed an initial name check.

[USCG-2006-24196, 72 FR 3584, Jan. 25, 2007, as amended by USCG-2013-0397, 78 FR 39173, July 1, 2013; 78 FR 41305, July 10, 2013; USCG-2007-28915, 81 FR 57712, Aug. 23, 2016]

return arrow Back to Top

§105.260   Security measures for restricted areas.

(a) General. The facility owner or operator must ensure the designation of restricted areas in order to:

(1) Prevent or deter unauthorized access;

(2) Protect persons authorized to be in the facility;

(3) Protect the facility;

(4) Protect vessels using and serving the facility;

(5) Protect sensitive security areas within the facility;

(6) Protect security and surveillance equipment and systems; and

(7) Protect cargo and vessel stores from tampering.

(b) Designation of Restricted Areas. The facility owner or operator must ensure restricted areas are designated within the facility. They must also ensure that all restricted areas are clearly marked and indicate that access to the area is restricted and that unauthorized presence within the area constitutes a breach of security. The facility owner or operator may also designate the entire facility as a restricted area. Restricted areas must include, as appropriate:

(1) Shore areas immediately adjacent to each vessel moored at the facility;

(2) Areas containing sensitive security information, including cargo documentation;

(3) Areas containing security and surveillance equipment and systems and their controls, and lighting system controls; and

(4) Areas containing critical facility infrastructure, including:

(i) Water supplies;

(ii) Telecommunications;

(iii) Electrical system; and

(iv) Access points for ventilation and air-conditioning systems;

(5) Manufacturing or processing areas and control rooms;

(6) Locations in the facility where access by vehicles and personnel should be restricted;

(7) Areas designated for loading, unloading or storage of cargo and stores; and

(8) Areas containing cargo consisting of dangerous goods or hazardous substances, including certain dangerous cargoes.

(c) The owner or operator must ensure that all restricted areas have clearly established security measures to:

(1) Identify which facility personnel are authorized to have access;

(2) Determine which persons other than facility personnel are authorized to have access;

(3) Determine the conditions under which that access may take place;

(4) Define the extent of any restricted area;

(5) Define the times when access restrictions apply;

(6) Clearly mark all restricted areas and indicate that access to the area is restricted and that unauthorized presence within the area constitutes a breach of security;

(7) Control the entry, parking, loading and unloading of vehicles;

(8) Control the movement and storage of cargo and vessel stores; and

(9) Control unaccompanied baggage or personal effects.

(d) MARSEC Level 1. At MARSEC Level 1, the facility owner or operator must ensure the implementation of security measures to prevent unauthorized access or activities within the area. These security measures may include:

(1) Restricting access to only authorized personnel;

(2) Securing all access points not actively used and providing physical barriers to impede movement through the remaining access points;

(3) Assigning personnel to control access to restricted areas;

(4) Verifying the identification and authorization of all persons and all vehicles seeking entry;

(5) Patrolling or monitoring the perimeter of restricted areas;

(6) Using security personnel, automatic intrusion detection devices, surveillance equipment, or surveillance systems to detect unauthorized entry or movement within restricted areas;

(7) Directing the parking, loading, and unloading of vehicles within a restricted area;

(8) Controlling unaccompanied baggage and or personal effects after screening;

(9) Designating restricted areas for performing inspections of cargo and vessel stores while awaiting loading; and

(10) Designating temporary restricted areas to accommodate facility operations. If temporary restricted areas are designated, the FSP must include a requirement to conduct a security sweep of the designated temporary restricted area both before and after the area has been established.

(e) MARSEC Level 2. In addition to the security measures required for MARSEC Level 1 in this section, at MARSEC Level 2, the facility owner or operator must also ensure the implementation of additional security measures, as specified for MARSEC Level 2 in their approved FSP. These additional security measures may include:

(1) Increasing the intensity and frequency of monitoring and access controls on existing restricted access areas;

(2) Enhancing the effectiveness of the barriers or fencing surrounding restricted areas, by the use of patrols or automatic intrusion detection devices;

(3) Reducing the number of access points to restricted areas, and enhancing the controls applied at the remaining accesses;

(4) Restricting parking adjacent to vessels;

(5) Further restricting access to the restricted areas and movements and storage within them;

(6) Using continuously monitored and recorded surveillance equipment;

(7) Enhancing the number and frequency of patrols, including waterborne patrols undertaken on the boundaries of the restricted areas and within the areas; or

(8) Establishing and restricting access to areas adjacent to the restricted areas.

(f) MARSEC Level 3. In addition to the security measures required for MARSEC Level 1 and MARSEC Level 2, at MARSEC Level 3, the facility owner or operator must ensure the implementation of additional security measures, as specified for MARSEC Level 3 in their approved FSP. These additional security measures may include:

(1) Restricting access to additional areas;

(2) Prohibiting access to restricted areas, or

(3) Searching restricted areas as part of a security sweep of all or part of the facility.

return arrow Back to Top

§105.265   Security measures for handling cargo.

(a) General. The facility owner or operator must ensure that security measures relating to cargo handling, some of which may have to be applied in liaison with the vessel, are implemented in order to:

(1) Deter tampering;

(2) Prevent cargo that is not meant for carriage from being accepted and stored at the facility without the knowing consent of the facility owner or operator;

(3) Identify cargo that is approved for loading onto vessels interfacing with the facility;

(4) Include cargo control procedures at access points to the facility;

(5) Identify cargo that is accepted for temporary storage in a restricted area while awaiting loading or pick up;

(6) Restrict the entry of cargo to the facility that does not have a confirmed date for loading, as appropriate;

(7) Ensure the release of cargo only to the carrier specified in the cargo documentation;

(8) When there are regular or repeated cargo operations with the same shipper, coordinate security measures with the shipper or other responsible party in accordance with an established agreement and procedure; and

(9) Create, update, and maintain a continuous inventory of all dangerous goods and hazardous substances from receipt to delivery within the facility, giving the location of those dangerous goods and hazardous substances.

(b) MARSEC Level 1. At MARSEC Level 1, the facility owner or operator must ensure the implementation of measures to:

(1) Unless unsafe to do so, routinely check cargo, cargo transport units, and cargo storage areas within the facility prior to, and during, cargo handling operations for evidence of tampering;

(2) Check that cargo, containers, or other cargo transport units entering the facility match the delivery note or equivalent cargo documentation;

(3) Screen vehicles; and

(4) Check seals and other methods used to prevent tampering upon entering the facility and upon storage within the facility.

(c) MARSEC Level 2. In addition to the security measures required for MARSEC Level 1 in this section, at MARSEC Level 2, the facility owner or operator must also ensure the implementation of additional security measures, as specified for MARSEC Level 2 in the approved FSP. These additional security measures may include:

(1) Conducting check of cargo, containers or other cargo transport units, and cargo storage areas within the facility for evidence of tampering;

(2) Intensifying checks, as appropriate, to ensure that only the documented cargo enters the facility, is temporarily stored there, and then loaded onto the vessel;

(3) Intensifying the screening of vehicles;

(4) Increasing frequency and detail in checking of seals and other methods used to prevent tampering;

(5) Coordinating enhanced security measures with the shipper or other responsible party in accordance with an established agreement and procedures;

(6) Increasing the frequency and intensity of visual and physical inspections; or

(7) Limiting the number of locations where dangerous goods and hazardous substances, including certain dangerous cargoes, can be stored.

(d) MARSEC Level 3. In addition to the security measures required for MARSEC Level 1 and MARSEC Level 2, at MARSEC Level 3, the facility owner or operator must ensure the implementation of additional security measures, as specified for MARSEC Level 3 in the approved FSP. These additional security measures may include:

(1) Restricting or suspending cargo movements or operations within all or part of the facility or specific vessels;

(2) Being prepared to cooperate with responders and vessels; or

(3) Verifying the inventory and location of any dangerous goods and hazardous substances, including certain dangerous cargoes, held within the facility and their location.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60541, Oct. 22, 2003]

return arrow Back to Top

§105.270   Security measures for delivery of vessel stores and bunkers.

(a) General. The facility owner or operator must ensure that security measures relating to the delivery of vessel stores and bunkers are implemented to:

(1) Check vessel stores for package integrity;

(2) Prevent vessel stores from being accepted without inspection;

(3) Deter tampering;

(4) For vessels that routinely use a facility, establish and execute standing arrangements between the vessel, its suppliers, and a facility regarding notification and the timing of deliveries and their documentation; and

(5) Check vessel stores by the following means:

(i) Visual examination;

(ii) Physical examination;

(iii) Detection devices, such as scanners; or

(iv) Canines.

(b) MARSEC Level 1. At MARSEC Level 1, the facility owner or operator must ensure the implementation of measures to:

(1) Screen vessel stores at the rate specified in the approved Facility Security Plan (FSP);

(2) Require advance notification of vessel stores or bunkers delivery, including a list of stores, delivery vehicle driver information, and vehicle registration information;

(3) Screen delivery vehicles at the frequencies specified in the approved FSP; and

(4) Escort delivery vehicles within the facility at the rate specified by the approved FSP.

(c) MARSEC Level 2. In addition to the security measures required for MARSEC Level 1 in this section, at MARSEC Level 2, the facility owner or operator must also ensure the implementation of additional security measures, as specified for MARSEC Level 2 in the approved FSP. These additional security measures may include:

(1) Detailed screening of vessel stores;

(2) Detailed screening of all delivery vehicles;

(3) Coordinating with vessel personnel to check the order against the delivery note prior to entry to the facility;

(4) Ensuring delivery vehicles are escorted within the facility; or

(5) Restricting or prohibiting the entry of vessel stores that will not leave the facility within a specified period.

(d) MARSEC Level 3. In addition to the security measures for MARSEC Level 1 and MARSEC Level 2, at MARSEC Level 3, the facility owner and operator must ensure implementation of additional security measures, as specified for MARSEC Level 3 in the approved FSP. Examples of these additional security measures may include:

(1) Checking all vessel stores more extensively;

(2) Restricting or suspending delivery of vessel stores; or

(3) Refusing to accept vessel stores on the facility.

return arrow Back to Top

§105.275   Security measures for monitoring.

(a) General. The facility owner or operator must ensure the implementation of security measures in this section and have the capability to continuously monitor, through a combination of lighting, security guards, waterborne patrols, automatic intrusion-detection devices, or surveillance equipment, as specified in the approved Facility Security Plan (FSP), the:

(1) Facility and its approaches, on land and water;

(2) Restricted areas within the facility; and

(3) Vessels at the facility and areas surrounding the vessels.

(b) MARSEC Level 1. At MARSEC Level 1, the facility owner or operator must ensure the security measures in this section are implemented at all times, including the period from sunset to sunrise and periods of limited visibility. For each facility, ensure monitoring capability that:

(1) When automatic intrusion-detection devices are used, activates an audible or visual alarm, or both, at a location that is continuously attended or monitored;

(2) Is able to function continually, including consideration of the possible effects of weather or of a power disruption;

(3) Monitors the facility area, including shore and waterside access to it;

(4) Monitors access points, barriers and restricted areas;

(5) Monitors access and movements adjacent to vessels using the facility, including augmentation of lighting provided by the vessel itself; and

(6) Limits lighting effects, such as glare, and their impact on safety, navigation, and other security activities.

(c) MARSEC Level 2. In addition to the security measures for MARSEC Level 1 in this section, at MARSEC Level 2, the facility owner or operator must also ensure the implementation of additional security measures, as specified for MARSEC Level 2 in the approved FSP. These additional measures may include:

(1) Increasing the coverage and intensity of surveillance equipment, including the provision of additional surveillance coverage;

(2) Increasing the frequency of foot, vehicle or waterborne patrols;

(3) Assigning additional security personnel to monitor and patrol; or

(4) Increasing the coverage and intensity of lighting, including the provision of additional lighting and coverage.

(d) MARSEC Level 3. In addition to the security measures for MARSEC Level 1 and MARSEC Level 2, at MARSEC Level 3, the facility owner or operator must also ensure implementation of additional security measures, as specified for MARSEC Level 3 in the approved FSP. These additional security measures may include:

(1) Switching on all lighting within, or illuminating the vicinity of, the facility;

(2) Switching on all surveillance equipment capable of recording activities within or adjacent to the facility;

(3) Maximizing the length of time such surveillance equipment can continue to record; or

(4) Complying with the instructions issued by those responding to the security incident.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60542, Oct. 22, 2003]

return arrow Back to Top

§105.280   Security incident procedures.

For each MARSEC Level, the facility owner or operator must ensure the Facility Security Officer and facility security personnel are able to:

(a) Respond to security threats or breaches of security and maintain critical facility and vessel-to-facility interface operations;

(b) Evacuate the facility in case of security threats or breaches of security;

(c) Report security incidents as required in §101.305 of this subchapter;

(d) Brief all facility personnel on possible threats and the need for vigilance, soliciting their assistance in reporting suspicious persons, objects, or activities; and

(e) Secure non-critical operations in order to focus response on critical operations.

return arrow Back to Top

§105.285   Additional requirements-passenger and ferry facilities.

(a) At all MARSEC Levels, the owner or operator of a passenger or ferry facility must ensure, in coordination with a vessel moored at the facility, that the following security measures are implemented in addition to the requirements of this part:

(1) Establish separate areas to segregate unchecked persons and personal effects from checked persons and personal effects;

(2) Ensure that a defined percentage of vehicles to be loaded aboard are screened prior to loading, in accordance with a MARSEC Directive or other orders issued by the Coast Guard;

(3) Ensure that all unaccompanied vehicles to be loaded on passenger vessels are screened prior to loading;

(4) Deny passenger access to secure and restricted areas unless escorted by authorized facility security personnel; and

(5) In a facility with a public access area designated under §105.106, provide sufficient security personnel to monitor all persons within the area.

(b) At MARSEC Level 2, in addition to the requirements in paragraph (a) of this section, the owner or operator of a passenger or ferry facility with a public access area designated under §105.106 must increase the intensity of monitoring of the public access area.

(c) At MARSEC Level 3, in addition to the requirements in paragraph (a) of this section, the owner or operator of a passenger or ferry facility with a public access area designated under §105.106 must increase the intensity of monitoring and assign additional security personnel to monitor the public access area.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60542, Oct. 22, 2003; USCG-2006-24196, 72 FR 3584, Jan. 25, 2007]

return arrow Back to Top

§105.290   Additional requirements—cruise ship terminals.

At all MARSEC Levels, in coordination with a vessel moored at the facility, the facility owner or operator must ensure the following security measures:

(a) Screen all persons, baggage, and personal effects for dangerous substances and devices in accordance with the requirements in subpart E of this part. The owner or operator of a cruise ship terminal need not duplicate any provisions fulfilled by the vessel. When a provision is fulfilled by a vessel, the applicable section of the terminal security program (TSP) must refer to that fact.

(b) Check the identification of all persons seeking to enter the facility in accordance with §§101.514, 101.515, and 105.255 of this subchapter. Persons holding a Transportation Worker Identification Credential (TWIC) must be checked as set forth in subpart E of part 101 of this subchapter. For persons not holding a TWIC, this check includes confirming the individual's validity for boarding by examining passenger tickets, boarding passes, government identification or visitor badges, or work orders;

(c) Designate holding, waiting, or embarkation areas within the facility's secure area to segregate screened persons and their personal effects awaiting embarkation from unscreened persons and their personal effects;

(d) Provide additional security personnel to designated holding, waiting, or embarkation areas within the facility's secure area; and

(e) Deny individuals not holding a TWIC access to secure and restricted areas unless escorted.

[USCG-2006-24196, 72 FR 3585, Jan. 25, 2007, as amended by USCG-2006-23846, 83 FR 12102, Mar. 19, 2018; USCG-2007-28915, 81 FR 57712, Aug. 23, 2016]

Editorial Note: By USCG-2007-28915, 81 FR 57712, Aug. 23, 2016, §105.290 was amended in part in paragraph (b) by removing the word “shall” and adding, in its place, the word “must”. This edit could not be made because this word did not exist when this regulation became effective.

return arrow Back to Top

§105.292   Additional requirements—cruise ship ports of call.

(a) The owner or operator of a cruise ship port of call must work with the operator of each cruise ship subject to part 104 of this chapter to ensure that passengers are screened for dangerous substances and devices in accordance with the qualification, training, and equipment requirements of §§105.530, 105.535, and 105.545. The port of call need not duplicate any provisions fulfilled by the vessel. When a provision is fulfilled by a vessel, the applicable section of the TSP must refer to that fact.

(b) The owner or operator of a cruise ship port of call must display the Prohibited Items List at each screening location.

[USCG-2006-23846, 83 FR 12102, Mar. 19, 2018]

return arrow Back to Top

§105.295   Additional requirements-Certain Dangerous Cargo (CDC) facilities.

(a) At all MARSEC Levels, owners or operators of CDC facilities must ensure the implementation of the following security measures in addition to the requirements of this part:

(1) Escort all visitors, contractors, vendors, and other non-facility employees at all times while on the facility, if access identification is not provided. Escort provisions do not apply to prearranged cargo deliveries;

(2) Control the parking, loading, and unloading of vehicles within a facility;

(3) Require security personnel to record or report their presence at key points during their patrols;

(4) Search unmanned or unmonitored waterfront areas for dangerous substances and devices prior to a vessel's arrival at the facility; and

(5) Provide an alternate or independent power source for security and communications systems.

(b) At MARSEC Level 2, in addition to the requirements for MARSEC Level 1, owners or operators of CDC facilities must ensure the implementation of the following security measures:

(1) Release cargo only in the presence of the Facility Security Officer (FSO) or a designated representative of the FSO; and

(2) Continuously patrol restricted areas.

(c) At MARSEC Level 3, in addition to the requirements for MARSEC Level 1 and MARSEC Level 2, owners or operators of CDC facilities must ensure the facilities are continuously guarded and restricted areas are patrolled.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60542, Oct. 22, 2003]

return arrow Back to Top

§105.296   Additional requirements-barge fleeting facilities.

(a) At MARSEC Level 1, in addition to the requirements of this part, an owner or operator of a barge fleeting facility must ensure the implementation of the following security measures:

(1) Designate one or more restricted areas within the barge fleeting facility to handle those barges carrying, in bulk, cargoes regulated by 46 CFR chapter I, subchapters D or O, or Certain Dangerous Cargoes;

(2) Maintain a current list of vessels and cargoes in the designated restricted area; and

(3) Ensure that at least one towing vessel is available to service the fleeting facility for every 100 barges within the facility.

(4) Control access to the barges once tied to the fleeting area by implementing TWIC as described in subpart E of part 101 of this subchapter, as applicable, and in accordance with the facility's assigned Risk Group, as described in §105.253.

(b) At MARSEC Level 2, in addition to the requirements of this part and MARSEC Level 1 requirements, an owner or operator of a barge fleeting facility must ensure security personnel are assigned to monitor or patrol the designated restricted area within the barge fleeting facility.

(c) At MARSEC Level 3, in addition to the requirements of this part and MARSEC Level 2 requirements, an owner or operator of a barge fleeting facility must ensure that both land and waterside perimeters of the designated restricted area within the barge fleeting facility are continuously monitored or patrolled.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60542, Oct. 22, 2003; USCG-2006-24196, 72 FR 3585, Jan. 25, 2007; USCG-2007-28915, 81 FR 57713, Aug. 23, 2016]

return arrow Back to Top

Subpart C—Facility Security Assessment (FSA)

§105.300   General.

(a) The Facility Security Assessment (FSA) is a written document that is based on the collection of background information, the completion of an on-scene survey and an analysis of that information.

(b) A common FSA may be conducted for more than one similar facility provided the FSA reflects any facility-specific characteristics that are unique.

(c) Third parties may be used in any aspect of the FSA if they have the appropriate skills and if the Facility Security Officer (FSO) reviews and accepts their work.

(d) Those involved in a FSA must be able to draw upon expert assistance in the following areas, as appropriate:

(1) Knowledge of current security threats and patterns;

(2) Recognition and detection of dangerous substances and devices;

(3) Recognition of characteristics and behavioral patterns of persons who are likely to threaten security;

(4) Techniques used to circumvent security measures;

(5) Methods used to cause a security incident;

(6) Effects of dangerous substances and devices on structures and facility services;

(7) Facility security requirements;

(8) Facility and vessel interface business practices;

(9) Contingency planning, emergency preparedness, and response;

(10) Physical security requirements;

(11) Radio and telecommunications systems, including computer systems and networks;

(12) Marine or civil engineering; and

(13) Facility and vessel operations.

return arrow Back to Top

§105.305   Facility Security Assessment (FSA) requirements.

(a) Background. The facility owner or operator must ensure that the following background information, if applicable, is provided to the person or persons who will conduct the assessment:

(1) The general layout of the facility, including:

(i) The location of each active and inactive access point to the facility;

(ii) The number, reliability, and security duties of facility personnel;

(iii) Security doors, barriers, and lighting;

(iv) The location of restricted areas;

(v) The emergency and stand-by equipment available to maintain essential services;

(vi) The maintenance equipment, cargo spaces, storage areas, and unaccompanied baggage storage;

(vii) Location of escape and evacuation routes and assembly stations; and

(viii) Existing security and safety equipment for protection of personnel and visitors;

(2) Response procedures for fire or other emergency conditions;

(3) Procedures for monitoring facility and vessel personnel, vendors, repair technicians, and dock workers;

(4) Existing contracts with private security companies and existing agreements with local or municipal agencies;

(5) Procedures for controlling keys and other access prevention systems;

(6) Procedures for cargo and vessel stores operations;

(7) Response capability to security incidents;

(8) Threat assessments, including the purpose and methodology of the assessment, for the port in which the facility is located or at which passengers embark or disembark;

(9) Previous reports on security needs; and

(10) Any other existing security procedures and systems, equipment, communications, and facility personnel.

(b) On-scene survey. The facility owner or operator must ensure that an on-scene survey of each facility is conducted. The on-scene survey examines and evaluates existing facility protective measures, procedures, and operations to verify or collect the information required in paragraph (a) of this section.

(c) Analysis and recommendations. In conducting the FSA, the facility owner or operator must ensure that the FSO analyzes the facility background information and the on-scene survey, and considering the requirements of this part, provides recommendations to establish and prioritize the security measures that should be included in the FSP. The analysis must consider:

(1) Each vulnerability found during the on-scene survey including but not limited to:

(i) Waterside and shore-side access to the facility and vessel berthing at the facility;

(ii) Structural integrity of the piers, facilities, and associated structures;

(iii) Existing security measures and procedures, including identification systems;

(iv) Existing security measures and procedures relating to services and utilities;

(v) Measures to protect radio and telecommunication equipment, including computer systems and networks;

(vi) Adjacent areas that may be exploited during or for an attack;

(vii) Areas that may, if damaged or used for illicit observation, pose a risk to people, property, or operations within the facility;

(viii) Existing agreements with private security companies providing waterside and shore-side security services;

(ix) Any conflicting policies between safety and security measures and procedures;

(x) Any conflicting facility operations and security duty assignments;

(xi) Any enforcement and personnel constraints;

(xii) Any deficiencies identified during daily operations or training and drills; and

(xiii) Any deficiencies identified following security incidents or alerts, the report of security concerns, the exercise of control measures, or audits;

(2) Possible security threats, including but not limited to:

(i) Damage to or destruction of the facility or of a vessel moored at the facility;

(ii) Hijacking or seizure of a vessel moored at the facility or of persons on board;

(iii) Tampering with cargo, essential equipment or systems, or stores of a vessel moored at the facility;

(iv) Unauthorized access or use including the presence of stowaways;

(v) Smuggling dangerous substances and devices to the facility;

(vi) Use of a vessel moored at the facility to carry those intending to cause a security incident and their equipment;

(vii) Use of a vessel moored at the facility as a weapon or as a means to cause damage or destruction;

(viii) Impact on the facility and its operations due to a blockage of entrances, locks, and approaches; and

(ix) Use of the facility as a transfer point for nuclear, biological, radiological, explosive, or chemical weapons;

(3) Threat assessments by Government agencies;

(4) Vulnerabilities, including human factors, in the facility's infrastructure, policies and procedures;

(5) Any particular aspects of the facility, including the vessels using the facility, which make it likely to be the target of an attack;

(6) Likely consequences in terms of loss of life, damage to property, and economic disruption, including disruption to transportation systems, of an attack on or at the facility; and

(7) Locations where access restrictions or prohibitions will be applied for each MARSEC Level.

(d) FSA report. (1) The facility owner or operator must ensure that a written FSA report is prepared and included as part of the FSP. The report must contain:

(i) A summary of how the on-scene survey was conducted;

(ii) A description of existing security measures, including inspection, control and monitoring equipment, personnel identification documents and communication, alarm, lighting, access control, and similar systems;

(iii) A description of each vulnerability found during the on-scene survey;

(iv) A description of security measures that could be used to address each vulnerability;

(v) A list of the key facility operations that are important to protect; and

(vi) A list of identified weaknesses, including human factors, in the infrastructure, policies, and procedures of the facility.

(2) A FSA report must describe the following elements within the facility:

(i) Physical security;

(ii) Structural integrity;

(iii) Personnel protection systems;

(iv) Procedural policies;

(v) Radio and telecommunication systems, including computer systems and networks;

(vi) Relevant transportation infrastructure; and

(vii) Utilities.

(3) The FSA report must list the persons, activities, services, and operations that are important to protect, in each of the following categories:

(i) Facility personnel;

(ii) Passengers, visitors, vendors, repair technicians, vessel personnel, etc.;

(iii) Capacity to maintain emergency response;

(iv) Cargo, particularly dangerous goods and hazardous substances;

(v) Delivery of vessel stores;

(vi) Any facility security communication and surveillance systems; and

(vii) Any other facility security systems, if any.

(4) The FSA report must account for any vulnerabilities in the following areas:

(i) Conflicts between safety and security measures;

(ii) Conflicts between duties and security assignments;

(iii) The impact of watch-keeping duties and risk of fatigue on facility personnel alertness and performance;

(iv) Security training deficiencies; and

(v) Security equipment and systems, including communication systems.

(5) The FSA report must discuss and evaluate key facility measures and operations, including:

(i) Ensuring performance of all security duties;

(ii) Controlling access to the facility, through the use of identification systems or otherwise;

(iii) Controlling the embarkation of vessel personnel and other persons and their effects (including personal effects and baggage whether accompanied or unaccompanied);

(iv) Procedures for the handling of cargo and the delivery of vessel stores;

(v) Monitoring restricted areas to ensure that only authorized persons have access;

(vi) Monitoring the facility and areas adjacent to the pier; and

(vii) The ready availability of security communications, information, and equipment.

(e) The FSA, FSA report, and FSP must be protected from unauthorized access or disclosure.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60542, Oct. 22, 2003]

return arrow Back to Top

§105.310   Submission requirements.

(a) A completed FSA report must be submitted with the Facility Security Plan required in §105.410 of this part.

(b) A facility owner or operator may generate and submit a report that contains the Facility Security Assessment for more than one facility subject to this part, to the extent that they share similarities in design and operations, if authorized and approved by the cognizant COTP.

(c) The FSA must be reviewed and validated, and the FSA report must be updated each time the FSP is submitted for reapproval or revisions.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60542, Oct. 22, 2003]

return arrow Back to Top

Subpart D—Facility Security Plan (FSP)

§105.400   General.

(a) The Facility Security Officer (FSO) must ensure a Facility Security Plan (FSP) is developed and implemented for each facility for which he or she is designated as FSO. The FSP:

(1) Must identify the FSO by name and position, and provide 24-hour contact information;

(2) Must be written in English;

(3) Must address each vulnerability identified in the Facility Security Assessment (FSA);

(4) Must describe security measures for each MARSEC Level; and

(5) May cover more than one facility to the extent that they share similarities in design and operations, if authorized and approved by the cognizant COTP.

(b) The FSP must be submitted for approval to the cognizant COTP in a written or electronic format. Information for submitting the FSP electronically can be found at https://homeport.uscg.mil/cgi-bin/st/portal/uscg_docs

/MyCG/Editorial/20090220/FSP_Submissi_

FAQ05DEC.pdf?id=00388e15db7e7bf4b1fc3

556059dac7c3e063b57&user_id=c5535d249

7d5d673ff261157e034a1ea.

(c) The FSP is sensitive security information and must be protected in accordance with 49 CFR part 1520.

(d) If the FSP is kept in an electronic format, procedures must be in place to prevent its unauthorized deletion, destruction, or amendment.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60542, Oct. 22, 2003; USCG-2013-0397, 78 FR 39173, July 1, 2013]

return arrow Back to Top

§105.405   Format and content of the Facility Security Plan (FSP).

(a) A facility owner or operator must ensure that the FSP consists of the individual sections listed in this paragraph (a). If the FSP does not follow the order as it appears in the list, the facility owner or operator must ensure that the FSP contains an index identifying the location of each of the following sections:

(1) Security administration and organization of the facility;

(2) Personnel training;

(3) Drills and exercises;

(4) Records and documentation;

(5) Response to change in MARSEC Level;

(6) Procedures for interfacing with vessels;

(7) Declaration of Security (DoS);

(8) Communications;

(9) Security systems and equipment maintenance;

(10) Security measures for access control, including the facility's TWIC Program and designated public access areas;

(11) Security measures for restricted areas;

(12) Security measures for handling cargo;

(13) Security measures for delivery of vessel stores and bunkers;

(14) Security measures for monitoring;

(15) Security incident procedures;

(16) Audits and security plan amendments;

(17) Facility Security Assessment (FSA) report;

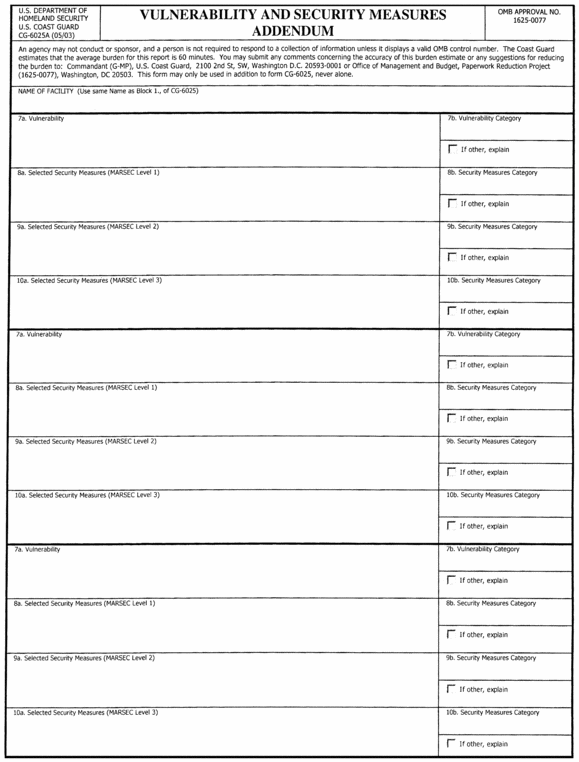

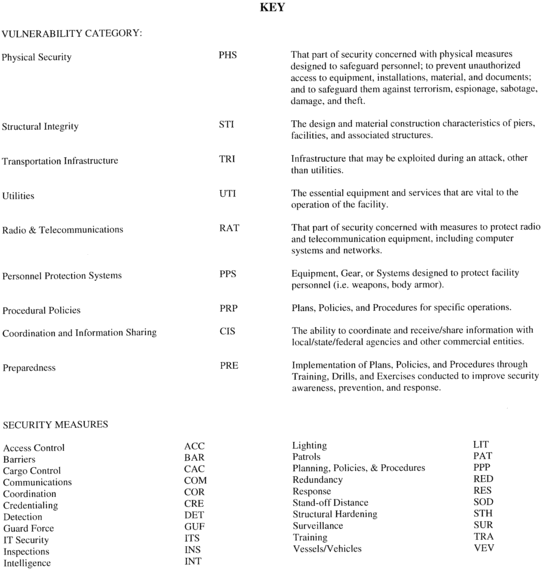

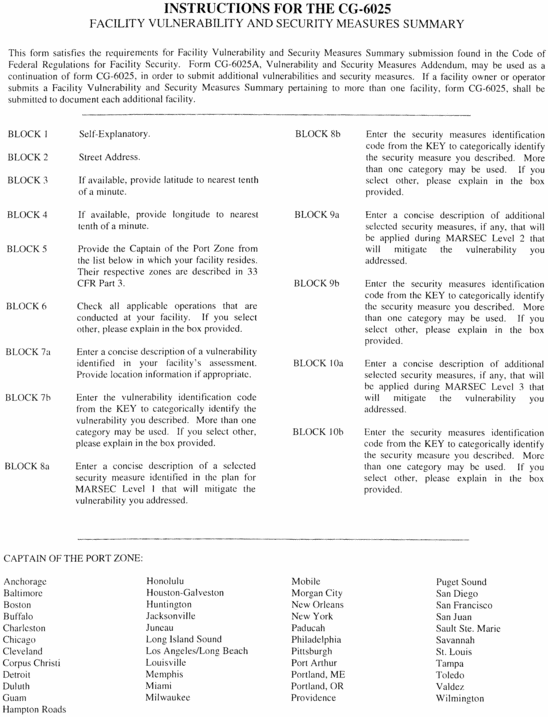

(18) Facility Vulnerability and Security Measures Summary (Form CG-6025) in appendix A to this part;

(19)-(20) [Reserved]

(21) If applicable, cruise ship TSP in accordance with subpart E of this part; and

(22) System for seafarers' access.

(b) The FSP must describe in detail how the requirements of subpart B of this part will be met.

(c) The Facility Vulnerability and Security Measures Summary (Form CG-6025) must be completed using information in the FSA concerning identified vulnerabilities and information in the FSP concerning security measures in mitigation of these vulnerabilities.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended by USCG-2006-24196, 72 FR 3585, Jan. 25, 2007; USCG-2006-23846, 83 FR 12102, Mar. 19, 2018; USCG-2007-28915, 81 FR 57713, Aug. 23, 2016; USCG-2013-1087, 84 FR 12119, Apr. 1, 2019]

return arrow Back to Top

§105.410   Submission and approval.

(a) The owner or operator of each facility currently in operation must either:

(1) Submit one copy of their Facility Security Plan (FSP) for review and approval to the cognizant COTP and a letter certifying that the FSP meets applicable requirements of this part; or

(2) If intending to operate under an Approved Alternative Security Program, a letter signed by the facility owner or operator stating which approved Alternative Security Program the owner or operator intends to use.

(b) Owners or operators of facilities not in service on or before December 31, 2003, must comply with the requirements in paragraph (a) of this section 60 days prior to beginning operations.

(c) The cognizant COTP will examine each submission for compliance with this part and either:

(1) Approve it and specify any conditions of approval, returning to the submitter a letter stating its acceptance and any conditions;

(2) Return it for revision, returning a copy to the submitter with brief descriptions of the required revisions; or

(3) Disapprove it, returning a copy to the submitter with a brief statement of the reasons for disapproval.

(d) An FSP may be submitted and approved to cover more than one facility where they share similarities in design and operations, if authorized and approved by each cognizant COTP.

(e) Each facility owner or operator that submits one FSP to cover two or more facilities of similar design and operation must address facility-specific information that includes the design and operational characteristics of each facility and must complete a separate Facility Vulnerability and Security Measures Summary (Form CG-6025), in Appendix A to Part 105—Facility Vulnerability and Security Measures Summary (CG-6025), for each facility covered by the plan.

(f) A FSP that is approved by the cognizant COTP is valid for five years from the date of its approval.

[USCG-2003-14732, 68 FR 39322, July 1, 2003; 68 FR 41916, July 16, 2003, as amended at 68 FR 60542, Oct. 22, 2003; USCG-2004-19963, 70 FR 74669, Dec. 16, 2005; USCG-2013-0397, 78 FR 39173, July 1, 2013; USCG-2007-28915, 81 FR 57713, Aug. 23, 2016]

return arrow Back to Top

§105.415   Amendment and audit.

(a) Amendments. (1) Amendments to a Facility Security Plan (FSP) that is approved by the cognizant COTP may be initiated by:

(i) The facility owner or operator; or

(ii) The cognizant COTP upon a determination that an amendment is needed to maintain the facility's security. The cognizant COTP, who will give the facility owner or operator written notice and request that the facility owner or operator propose amendments addressing any matters specified in the notice. The facility owner or operator will have at least 60 days to submit its proposed amendments. Until amendments are approved, the facility owner or operator shall ensure temporary security measures are implemented to the satisfaction of the COTP.

(2) Proposed amendments must be submitted to the cognizant COTP. If initiated by the facility owner or operator, the proposed amendment must be submitted at least 30 days before the amendment is to take effect unless the cognizant COTP allows a shorter period. The cognizant COTP will approve or disapprove the proposed amendment in accordance with §105.410 of this subpart.

(3) Nothing in this section should be construed as limiting the facility owner or operator from the timely implementation of such additional security measures not enumerated in the approved FSP as necessary to address exigent security situations. In such cases, the owner or operator must notify the cognizant COTP by the most rapid means practicable as to the nature of the additional measures, the circumstances that prompted these additional measures, and the period of time these additional measures are expected to be in place.

(4) If there is a change in the owner or operator, the Facility Security Officer (FSO) must amend the FSP to include the name and contact information of the new facility owner or operator and submit the affected portion of the FSP for review and approval in accordance with §105.410 if this subpart.

(b) Audits. (1) The FSO must ensure an audit of the FSP is performed annually, beginning no later than one year from the initial date of approval, and attach a letter to the FSP certifying that the FSP meets the applicable requirements of this part.

(2) The FSP must be audited if there is a change in the facility's ownership or operator, or if there have been modifications to the facility, including but not limited to physical structure, emergency response procedures, security measures, or operations.

(3) Auditing the FSP as a result of modifications to the facility may be limited to those sections of the FSP affected by the facility modifications.

(4) Unless impracticable due to the size and nature of the company or the facility, personnel conducting internal audits of the security measures specified in the FSP or evaluating its implementation must:

(i) Have knowledge of methods for conducting audits and inspections, and security, control, and monitoring techniques;

(ii) Not have regularly assigned security duties; and

(iii) Be independent of any security measures being audited.

(5) If the results of an audit require amendment of either the FSA or FSP, the FSO must submit, in accordance with §105.410 of this subpart, the amendments to the cognizant COTP for review and approval no later than 30 days after completion of the audit and a letter certifying that the amended FSP meets the applicable requirements of this part.

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60542, Oct. 22, 2003]

return arrow Back to Top

Subpart E—Facility Security: Cruise Ship Terminals

Source: USCG-2006-23846, 83 FR 12102, Mar. 19, 2018, unless otherwise noted.

return arrow Back to Top

§105.500   General.

(a) Applicability. The owner or operator of a cruise ship terminal must comply with this subpart when receiving a cruise ship or tenders from cruise ships.

(b) Purpose. This subpart establishes cruise ship terminal screening programs within the Facility Security Plans to ensure that prohibited items are not present within the secure areas that have been designated for screened persons, baggage, and personal effects, and are not brought onto cruise ships interfacing with the terminal.

(c) Compliance dates. (1) No later than October 15, 2018, cruise ship terminal owners or operators must submit, for each terminal, a terminal screening program (TSP) that conforms with the requirements in §105.505 to the cognizant COTP for review and approval.

(2) No later than April 18, 2019, each cruise ship terminal owner or operator must operate in compliance with an approved TSP and this subpart.

return arrow Back to Top

§105.505   Terminal Screening Program (TSP).

(a) General requirements. The owner or operator of a cruise ship terminal must ensure a TSP is developed, added to the Facility Security Plan (FSP), and implemented. The TSP must—

(1) Document all procedures that are employed to ensure all persons, baggage, and personal effects are screened at the cruise ship terminal prior to being allowed into a cruise ship terminal's secure areas or onto a cruise ship;

(2) Be written in English; and

(3) Be approved by the Coast Guard as part of the FSP in accordance with subpart D of this part.

(b) Availability. Each cruise ship terminal Facility Security Officer (FSO) must—

(1) Maintain the TSP in the same or similar location as the FSP as described in §105.400(d);

(2) Have an accessible, complete copy of the TSP at the cruise ship terminal;

(3) Have a copy of the TSP available for inspection upon request by the Coast Guard;

(4) Maintain the TSP as sensitive security information (SSI) and protect it in accordance with 49 CFR part 1520; and

(5) Make a copy of the current Prohibited Items List (PIL) publicly available. The PIL and copies thereof are not SSI.

(c) Content. The TSP must include—

(1) A line diagram of the cruise ship terminal including—

(i) The physical boundaries of the terminal;

(ii) The location(s) where all persons intending to board a cruise ship, and all personal effects and baggage, are screened; and

(iii) The point(s) in the terminal beyond which no unscreened person may pass.

(2) The responsibilities of the owner or operator regarding the screening of persons, baggage, and personal effects;

(3) The procedure to obtain and maintain the PIL;

(4) The procedures used to comply with the requirements of §105.530 regarding qualifications of screeners;

(5) The procedures used to comply with the requirements of §105.535 regarding training of screeners;

(6) The number of screeners needed at each location to ensure adequate screening;

(7) A description of the equipment used to comply with the requirements of §105.525 regarding the screening of individuals, their personal effects, and baggage, including screening at increased Maritime Security (MARSEC) levels, and the procedures for use of that equipment;

(8) The operation, calibration, and maintenance of any and all screening equipment used in accordance with §105.545;

(9) The procedures used to comply with the requirements of §105.550 regarding the use of alternative screening methods and/or equipment, including procedures for passengers and crew with disabilities or medical conditions precluding certain screening methods; and

(10) The procedures used when prohibited items are detected.

(d) As a part of the FSP, the requirements in §§105.410 and 105.415 governing submission, approval, amendment, and audit of a TSP apply.

return arrow Back to Top

§105.510   Screening responsibilities of the owner or operator.

In addition to the requirements of §105.200, the owner or operator of a cruise ship terminal must ensure that—

(a) A TSP is developed in accordance with this subpart, and submitted to and approved by the cognizant Captain of the Port (COTP), as part of the FSP, in accordance with this part;

(b) Screening is conducted in accordance with this subpart and an approved TSP;

(c) Specific screening responsibilities are documented in a Declaration of Security (DoS) in accordance with §§104.255 and 105.245 of this subchapter;

(d) Procedures are established for reporting and handling prohibited items that are detected during the screening process;

(e) All personal screening is conducted in a uniform, courteous, and efficient manner respecting personal rights to the maximum extent practicable; and

(f) When the MARSEC (Maritime Security) level is increased, additional screening measures are employed in accordance with an approved TSP.

return arrow Back to Top

§105.515   Prohibited Items List (PIL).

(a) The owner or operator of a cruise ship terminal must obtain from the Coast Guard and maintain a Prohibited Items List (PIL) consisting of dangerous substances and devices for purposes of §105.290(a). The list specifies those items that the Coast Guard prohibits all persons from bringing onboard any cruise ship through terminal screening operations regulated under 33 CFR part 105.

(b) Procedures for screening persons, baggage and personal effects must include use of the PIL which will be provided to screening personnel by the cruise ship terminal owner or operator.

(c) The list must be present at each screening location during screening operations. Additionally, the list must be included as part of the DoS.

(d) Facility personnel must report the discovery of a prohibited item introduced by violating security measures at a cruise ship terminal as a breach of security in accordance with §101.305(b) of this subchapter. A prohibited item discovered during security screening is not considered to be a breach of security, and should be treated in accordance with local law enforcement practices.

return arrow Back to Top

§105.525   Terminal screening operations.

(a) Passengers and personal effects. (1) Each cruise ship terminal must have at least one location to screen passengers and carry-on items prior to allowing such passengers and carry-on items into secure areas of the terminal designated for screened persons and carry-on items.

(2) Screening locations must be adequately staffed and equipped to conduct screening operations in accordance with the approved TSP.

(3) Facility personnel must check personal identification prior to allowing a person to proceed to a screening location, in accordance with §105.290(b), which sets forth additional requirements for cruise ship terminals at all MARSEC levels.

(4) All screened passengers and their carry-on items must remain in secure areas of the terminal designated for screened persons and personal effects until boarding the cruise ship. Persons who leave a secure area must be re-screened.

(b) Persons other than passengers. Crew members, visitors, vendors, and other persons who are not passengers, and their personal effects, must be screened either at screening locations where passengers are screened or at another location that is adequately staffed and equipped in accordance with this subpart and is specifically designated in an approved TSP.

(c) Checked baggage. (1) A cruise ship terminal that accepts baggage must have at least one location designated for the screening of checked baggage.

(2) Screening personnel may only accept baggage from a person with—

(i) A valid passenger ticket;

(ii) Joining instructions;

(iii) Work orders; or

(iv) Authorization from the terminal or vessel owner or operator to handle baggage;

(3) Screening personnel may only accept baggage in an area designated in an approved TSP and manned by terminal screening personnel; and

(4) Screening or security personnel must constantly control the checked baggage, in a secure area, from the time it is accepted at the terminal until it is onboard the cruise ship.

(d) Unaccompanied baggage. (1) Facility personnel may accept unaccompanied baggage, as defined in §101.105 of this subchapter, only if the Vessel Security Officer (VSO) provides prior written approval for the unaccompanied baggage.

(2) If facility personnel accept unaccompanied baggage at a cruise ship terminal, they must handle such baggage in accordance with paragraph (c) of this section.

return arrow Back to Top

§105.530   Qualifications of screeners.

In addition to the requirements for facility personnel with security duties contained in §105.210, screening personnel at cruise ship terminals must—

(a) Have a combination of education and experience that the FSO has determined to be sufficient for the individual to perform the duties of the position; and

(b) Be capable of using all screening methods and equipment needed to perform the duties of the position.

return arrow Back to Top

§105.535   Training requirements of screeners.

In addition to the requirements for facility personnel with security duties in §105.210, screening personnel at cruise ship terminals must demonstrate knowledge, understanding, and proficiency in the following areas as part of their security-related familiarization—

(a) Historic and current threats against the cruise ship industry;

(b) Relevant portions of the TSP and FSP;

(c) The purpose and contents of the cruise ship terminal PIL;

(d) Specific instruction on screening methods and equipment used at the cruise ship terminal;

(e) Terminal-specific response procedures when a dangerous substance or device is detected;

(f) Additional screening requirements at increased MARSEC levels; and,

(g) Any additional topics specified in the facility's approved TSP.

return arrow Back to Top

§105.540   Screener participation in drills and exercises.

Screening personnel must participate in drills and exercises required under §105.220.

return arrow Back to Top

§105.545   Screening equipment.

The following screening equipment may be used, provided it is specifically documented in an approved TSP.

(a) Metal detection devices. (1) The owner or operator of a cruise ship terminal may use a metal detection device to screen persons, baggage, and personal effects.

(2) Metal detection devices used at any cruise ship terminal must be operated, calibrated, and maintained in accordance with manufacturer's instructions.

(b) X-ray systems. The owner or operator of a cruise ship terminal may use an x-ray system for the screening and inspection of personal effects and baggage if all of the following requirements are satisfied—

(1) The system meets the standards for cabinet x-ray systems used primarily for the inspection of baggage, found in 21 CFR 1020.40;

(2) Familiarization training for screeners, in accordance with §105.535, includes training in radiation safety and the efficient use of x-ray systems;

(3) The system must meet the imaging requirements found in 49 CFR 1544.211;

(4) The system must be operated, calibrated, and maintained in accordance with manufacturer's instructions;

(5) The x-ray system must fully comply with any defect notice or modification order issued for that system by the Food and Drug Administration (FDA), unless the FDA has advised that a defect or failure to comply does not create a significant risk of injury, including genetic injury, to any person;

(6) The owner or operator must ensure that a sign is posted in a conspicuous place at the screening location where x-ray systems are used to inspect personal effects and where screeners accept baggage. These signs must—

(i) Notify individuals that items are being screened by x-ray and advise them to remove all x-ray, scientific, and high-speed film from their personal effects and baggage before screening;

(ii) Advise individuals that they may request screening of their photographic equipment and film packages be done without exposure to an x-ray system; and

(iii) Advise individuals to remove all photographic film from their personal effects before screening, if the x-ray system exposes any personal effects or baggage to more than one milliroentgen during the screening.

(c) Explosives detection systems. The owner or operator of a cruise ship terminal may use an explosives detection system to screen baggage and personal effects for the presence of explosives if it meets the following requirements:

(1) At locations where x-ray technology is used to inspect baggage or personal effects for explosives, the terminal owner or operator must post signs in accordance with paragraph (b)(6) of this section.

(2) All explosives detection equipment used at a cruise ship terminal must be operated, calibrated, and maintained in accordance with manufacturer's instructions.

return arrow Back to Top

§105.550   Alternative screening.

If the owner or operator of a U.S. cruise ship terminal chooses to screen using equipment or methods other than those described in §105.545, the equipment and methods must be described in detail in an approved TSP.

return arrow Back to Top

Appendix A to Part 105—Facility Vulnerability and Security Measures Summary (Form CG-6025)

eCFR graphic er22oc03.000.gif

View or download PDF

eCFR graphic er01jy03.002.gif

View or download PDF

eCFR graphic en01jy03.003.gif

View or download PDF

eCFR graphic en01jy03.004.gif

View or download PDF

[USCG-2003-14732, 68 FR 39322, July 1, 2003, as amended at 68 FR 60543, Oct. 22, 2003]

return arrow Back to Top
